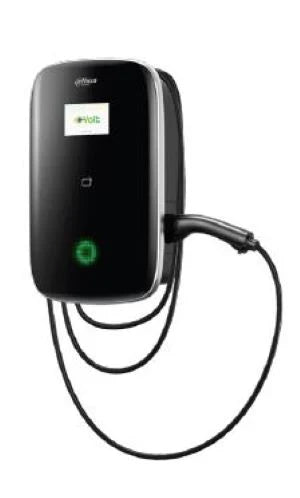

DAHUA D-Volt Pro 22kW Intelligent EV Charger with Type 2 Cable, LCD Display, RFID & App Control – DHI-ICS-A220E-B2D
Same day shipping if ordered before 2pm NSW
2-Year Warranty
DAHUA D-Volt Pro 22kW Intelligent EV Charger with Type 2 Cable, LCD Display, RFID & App Control – DHI-ICS-A220E-B2D
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Description
The DAHUA Intelligent D-Volt Pro 22kW EV Charger DHI-ICS-A220E-B2D is a high-performance commercial electric vehicle charger designed for fast, smart and secure EV charging in workplaces, retail sites, public parking areas, hospitals, shopping centres and visitor destinations. With 22kW three-phase AC charging, Type 2 connectivity, RFID/app/plug-and-play control, OCPP 1.6J support and a 4.3-inch LCD display, it delivers intelligent EV charging management for modern Australian and New Zealand installations.
The D-Volt Pro is engineered for reliable day-to-day charging with adjustable current, scheduled charging, remote operation and strong electrical protection. It supports integration through OCPP 1.6J and ModBus TCP, making it suitable for managed EV charging environments where monitoring, control and maintenance visibility are important. Dahua’s Oceania product page lists the D-Volt Pro cable version with a 4.3-inch LCD display, RFID/app/plug-and-play charging methods, OCPP 1.6J, ModBus TCP, built-in MID-certified meter, IP66 cable protection, IK10 impact rating and 3-year warranty.
What’s Included in the Box
- DAHUA D-Volt Pro EV Charger unit
- Integrated Type 2 charging cable, model dependent
- Wall-mount back plate
- Decorative cover and waterproof cover
- Installation screws and mounting accessories
- Product documentation / installation resources
Main Features
- 22kW three-phase AC EV charging for commercial and high-demand locations
- Type 2 charging connection suitable for compatible EVs
- 4.3-inch LCD display for clear charging status visibility
- Three start methods: plug-and-play, RFID control and app control
- OCPP 1.6J and ModBus TCP support for smart charging management
- Built-in MID-certified meter for energy measurement
- Adjustable charging current from 6A to 32A
- Scheduled charging to help optimise charging times and energy usage
- USB and remote upgrade support via OCPP 1.6J
- Integrated leakage protection: 30mA Type A RCD + 6mA DC protection
- Multiple safety protections, including overvoltage, undervoltage, overcurrent, short-circuit, surge, leakage and overtemperature protection
- IP66 cable version / IP55 socket version protection and IK10 impact resistance
- Indoor or outdoor installation in suitable well-ventilated locations
- Wall mount and vertical pole mount installation options
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | DAHUA |
| Series | D-Volt Pro |
| Product Type | Intelligent EV Charger |
| Product Code | DHI-ICS-A220E-B2D |
| Rated Power | 22kW |
| Power Supply | AC400V ±15%, 50/60Hz, 3-phase |
| Operating Current | 3 × 32A max |
| Wiring Method | L1 / L2 / L3 / N / PE |
| Connector Type | Type 2, 5m cable / Type 2 socket depending on variant |
| Display | 4.3-inch LCD |
| Charging Protocol | Mode 3, EN/IEC 61851 |
| Charging Control | Plug & Play / RFID / App |
| Communication Protocol | OCPP 1.6J and ModBus TCP |
| Ethernet | 1 × RJ-45 port |
| Additional Ports | RS485 × 2, CAN × 2, USB |
| Metering | Built-in MID-certified meter |
| Leakage Protection | 30mA Type A RCD + 6mA DC |
| Protection Rating | IP66 cable version / IP55 socket version |
| Impact Rating | IK10 |
| Operating Temperature | –30°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Product Dimensions | 443.0mm × 273.0mm × 171.5mm |
| Net Weight | 6.0kg ± 0.5kg |
| Package Weight | 12.0kg ± 1.0kg |
| Installation | Wall mount or vertical pole mount |
| Installation Environment | Indoor or outdoor, well-ventilated areas free from oil stains, chemicals, flammable or explosive substances |
| Certifications Listed by Manufacturer | CE/CB, EN IEC61851-1, EN IEC61851-21-2, IEC62955, 2011/65/EU, 2015/863/EU and listed ETSI/EN standards |
| Warranty | 3 years |
Warranty Information
The DAHUA DHI-ICS-A220E-B2D D-Volt Pro EV Charger is listed with a 3-year warranty. Warranty handling should be completed through authorised Dahua channels or direct brand representative communication, subject to local terms, installation requirements and warranty policy.
Brand Description
DAHUA Technology is a global provider of intelligent IoT, video-centric and smart infrastructure solutions. Its D-Volt EV charging range extends the brand’s intelligent hardware and software capabilities into electric vehicle charging, supporting connected charging, remote operation, monitoring and commercial energy management.
Practical Use Scenarios
- Commercial office EV charging stations
- Shopping centre and retail car parks
- Hospitals and healthcare facility parking
- Hotels, resorts and tourist attractions
- Public institutions and enterprise parking areas
- Fleet charging areas for compatible EVs
- Apartment or mixed-use developments requiring managed charging
- Outdoor or semi-outdoor EV charging points where suitable installation conditions are met
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The DAHUA DHI-ICS-A220E-B2D D-Volt Pro 22kW EV Charger is well suited to Australian and New Zealand commercial EV charging environments where smart control, robust protection and reliable charging performance are required. Dahua Oceania lists the D-Volt Pro cable version with a 22kW option, OCPP 1.6J, ModBus TCP, MID-certified metering, Type 2 connection, IP-rated protection and IK10 impact resistance.
For AU/NZ projects, installation should always be completed by a licensed electrician in accordance with local electrical regulations, site requirements and utility/network rules. No NDSS approval is claimed for this EV charger, as NDSS approval is not a relevant certification category for EV charging equipment. For best support, sourcing should be through authorised Dahua representatives, with warranty matters handled through official Dahua or authorised brand channels.
FAQs
What is the DAHUA DHI-ICS-A220E-B2D EV Charger used for?
The DAHUA DHI-ICS-A220E-B2D is a 22kW intelligent EV charger designed for commercial and managed electric vehicle charging locations such as car parks, workplaces, retail centres, hospitals and public facilities.
Does the DAHUA DHI-ICS-A220E-B2D support 22kW charging?
Yes. The DAHUA DHI-ICS-A220E-B2D is part of the D-Volt Pro 22kW range and supports three-phase AC charging with up to 3 × 32A operating current.
What charging methods does the DAHUA DHI-ICS-A220E-B2D support?
The DAHUA DHI-ICS-A220E-B2D supports plug-and-play charging, RFID control and app-based charging control.
Does the DAHUA DHI-ICS-A220E-B2D support OCPP?
Yes. The DAHUA DHI-ICS-A220E-B2D supports OCPP 1.6J, allowing integration with compatible EV charging management systems.
Is the DAHUA DHI-ICS-A220E-B2D suitable for outdoor installation?
The DAHUA DHI-ICS-A220E-B2D is designed for indoor or outdoor installation in well-ventilated environments, provided the site is free from oil stains, chemicals and flammable or explosive substances.
What protection rating does the DAHUA DHI-ICS-A220E-B2D have?
The DAHUA DHI-ICS-A220E-B2D D-Volt Pro range is listed with IP66 protection for the cable version, IP55 for the socket version and IK10 impact resistance.
Does the DAHUA DHI-ICS-A220E-B2D include leakage protection?
Yes. The DAHUA DHI-ICS-A220E-B2D includes 30mA Type A RCD and 6mA DC leakage protection.
What warranty does the DAHUA DHI-ICS-A220E-B2D include?
The DAHUA DHI-ICS-A220E-B2D is listed with a 3-year manufacturer warranty, subject to Dahua warranty terms and correct installation.
Need Help?
Here we answer the most common questions. If you can't find the answer to your question below, please contact us.
How much does it cost to install an EV charger at home?
Cost of installation varies depending on many factors, such as: Are you installing a single phase or three phase charger? How old is your home? Where do you want the charger located? Do you want any extra accessories or features with your charger (e.g. mounting it, connecting to solar panels, etc.)?
What kind of charger best suits my situation?
You may want to consider how much you drive, as this can determine whether you need single phase or three phase charging. Single phase charging being cheaper providing a slower charge whereas three phase provides a much faster charge, better suited for someone who is always driving. You must also consider what your switchboard in your home allows as not all switchboards can support three phase charging.
What's the difference between AC/DC charging?
AC (Alternating current) charging utilises the on-board AC to DC power converter that is connected to your EV battery to charge your car.
- Available in single-phase and 3-phase charging
- More cost-effective solutions
DC (Direct current) Charging performs AC to DC power conversion outside of the EV and is more used for commercial settings.
- Units are much larger due to housing a much larger AC-DC power converter than the converter in your car
- Greater charging range and capacity (20kWh-150kWh)
- Charging times are much faster than AC charging
- DC Charging leads connect directly to your battery
What is the difference between a 7kW charger and a 22kW charger?
The key difference between 7kW and 22kW chargers comes down to charging speed and the type of power supply they use. A 7kW charger runs on single phase power. It charges much slower than a 22kW unit, but it’s the most common option for homes since most switchboards only support single phase. A 22kW charger uses three phase power. It can deliver much faster charging, but it’s only suitable for homes that already have a three-phase setup. Ultimately, your vehicle’s onboard charger determines how much power it can accept, regardless of the charger’s maximum output.
